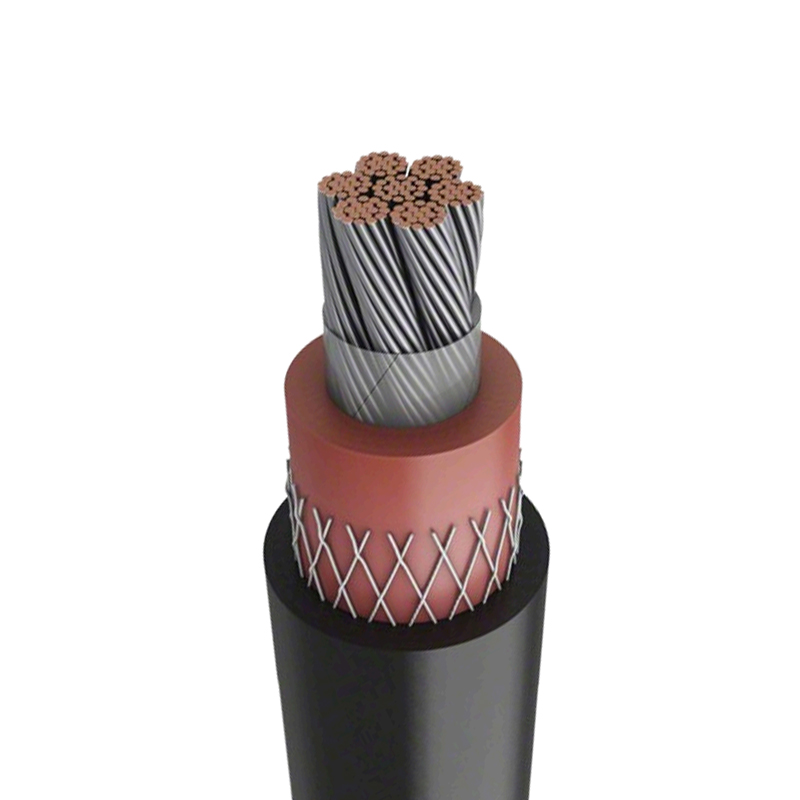

XLPE Insulated Power Cable For Rated Voltage 6/10kv-Wuxi Sanxin Cable Co., Ltd.

Type and name of cable

Nominal Cross-Sectional Area ㎡	Insulation thickness mm	YJV YJY YJLV YJLY			YJV22 YJV22 YJLV23 YJLV2 3			YIV32 YV32 YLV32 YILV32
		Approx overall diameter mm	Calculated weight of cable		Approx overall diameter mm	Calculated weight of cable		Approx overall diameter mm	Calculated weight of cable
		Approx overall diameter mm	YJV YJY	YJLV YJLY	Approx overall diameter mm	YJV22 YJV22	YJLV23 YJLV23	Approx overall diameter mm	YJLV23 YJLV23	YJLV32 YJLV32
1×25	3.4	19.2	560	一	23.2	839		25.2	935	一
1×35	3.4	20.3	678	一	24.3	970		26.3	1069	一
1×50	3.4	21.5	818	529	25.5	1127	838	27.5	1229	940
1×70	3.4	23.3	1056	637	27.1	1375	956	29.3	1495	1076
1×95	3.4	25.2	1342	762	29.0	1685	1105	31.2	1818	1238
1×120	3.4	26.4	1587	859	30.2	1946	1218	32.4	2081	1353
1×150	3.4	28.2	1887	988	32.0	2269	1370	34.2	2412	1513
1×185	3.4	29.8	2251	1130	33.6	2652	1531	35.8	2801	1680
1×240	3.4	32.4	2827	1359	37.6	3610	2142	38.4	3425	1957
1×300	3.4	34.9	3447	1602	39.9	4269	2424	40.9	4084	2239
1×400	3.4	37.6	4281	1916	42.8	5182	2817	44.6	5104	2739
1×500	3.4	41.1	5356	2320	46.7	6377	3341	48.1	6249	3213
1×630	3.4	45.0	6737	2828	50.8	7872	3963	54.6	8078	4169
1×800	3.4	49.1	8444	3441	55.1	9706	4703	57.7	9765	4762
1×1000	3.4	53.1	10243	4093	59.3	11630	5480	62.7	11795	5645
3×25	3.4	38.7	1859	一	44.6	2614	一	45.7	3479	一
3×35	3.4	41.3	2255	—	47.4	3067	一	48.3	3970	一
3×50	3.4	44.1	2719	1852	50.1	3569	2697	52.3	5021	4149
3×70	3.4	47.7	3454	2197	54.0	4392	3129	56.3	6002	4739
3×50	3.4	51.6	4330	2590	57.9	5338	3590	60.2	7045	5297
3×120	3.4	54.4	5140	2955	60.9	6197	4000	63.2	8017	5820
3×150	3.4	58.1	6055	3359	64.9	7238	4528	67.1	9130	6420
3×185	3.4	61.9	7271	3907	68.6	8453	5072	70.9	10515	7134
3×240	3.4	67.3	9050	4647	74.4	10388	5962	76.5	12566	8140
3×300	3.4	72.7	10993	5457	79.7	12419	6855	82.1	14825	9261
3×400	3.4	78.5	13589	6494	87.1	15975	8845	89.6	18802	11672
3×500	3.4	86.2	17026	7917	95.7	19720	10566	97.5	22745	13591

Type and name of cable

Nomial crosS- sectional area mm2	Insulation thickness mm	YJV YJY YJLV YJLY			YJV22 YJV22YJLV23 YJLV23			YJV32 YJV32 YJLV32 YJLV32
		Approx overall diameter mm	Calculated weight of cable		Approx overall diameter mm	Calculated weight of cable		Approx overall diameter mm	Calculated weight of cable
		Approx overall diameter mm	YJV YJY	YJLV YJLY	Approx overall diameter mm	YJV22 YJV22	YJLV23 YJLV23	Approx overall diameter mm	YJLV23 YJLV23	YJLV32 YJLV32
1×25	4.5	21.4	639	—	25.4	947	—	27.4	1049	—
1×35	4.5	22.7	767	—	26.5	1080	—	28.7	1199	—
1×50	4.5	23.9	913	624	27.7	1241	952	29.9	1368	1079
1×70	4.5	25.7	1159	740	29.5	1510	1091	31.7	1644	1225
1×95	4.5	27.4	1440	860	31.4	1825	1245	33.4	1952	1372
1×120	4.5	28.8	1701	973	32.6	2092	1364	34.8	2235	1507
1×150	4.5	30.4	1995	1096	34.4	2419	1520	36.4	2554	1655
1×185	4.5	32.2	2377	1256	37.4	3156	2035	38.2	2968	1847
1×240	4.5	34.8	2964	1496	39.8	3783	2315	40.8	3600	2132
1×300	4.5	37.3	3594	1749	42.5	4488	2643	44.3	4406	2561
1×400	4.5	39.8	4420	2055	45.2	5392	3027	47.0	5304	2939
1×500	4.5	43.5	5526	2490	49.1	6604	3568	50.7	6481	3445
1×630	4.5	47.4	6921	3012	53.4	8139	4230	55.8	8166	4257
1×800	4.5	51.5	8643	3640	57.5	9963	4960	60.1	10015	5012
1×1000	4.5	55.3	10435	4285	61.5	11875	5725	64.1	11933	5783
3×25	4.5	43.9	2160	—	49.9	3024	—	51.1	4010	—
3×35	4.5	46.2	2551	—	52.3	3447	—	54.6	5003	—
3×50	4.5	49.0	3036	2164	55.3	3994	3122	57.6	5623	4751
3×70	4.5	52.9	3812	2549	59.4	4865	3602	61.5	6606	5343
3×50	4.5	56.8	4747	2999	63.2	5833	4085	65.6	7741	5993
3×120	4.5	59.6	5546	3349	66.2	6711	4514	68.6	8693	6496
3×150	4.5	63.2	6528	3818	70.1	7751	5041	72.2	9797	7087
3×185	4.5	66.9	7728	4347	73.7	8985	5604	76.1	11206	7825
3×240	4.5	72.4	9574	5148	79.5	10954	6528	81.8	13322	8896
3×300	4.5	77.8	11572	6008	86.5	13880	8316	88.7	16685	11121
3×400	4.5	83.6	14281	7151	92.5	16704	9574	94.7	19671	12541
3×500	4.5	91.1	17640	8486	100.8	20456	11302	102.8	23644	14490

Type/ Name Main use of 8030 series aluminum alloy cable with high conductivity

Type	Name	Main uses
YJLHV	·Aluminum alloy core crosslinked polyethylene insulated polyvinyl chloride sheathed power cable	· It can be laid in non-humid indoor,tunnel and fixed on the support, saving the cost of bridge or pipe.
YJLHY	·Aluminum alloy core crosslinked polyethylene insulation polyethylene sheathed power cable	·It can be laid in a dry or humid environment, and the indoor support, bracket, ladder or cable fixture can be used.Outdoor cable trench, channel by channel or directly buried laying, can withstand greater mechanical external force.
YJLHV22	·Aluminum alloy core crosslinked polyethylene insulated polyvinyl chloride outer sheathed steel tape armouring power cable	·Stable and reliable performance, light weight, can be laid indoors, fixed brackets, laid in tunnels, pipelines, cable trenches and loose soil, can not withstand external mechanical action.
YJLHY23	·Aluminum alloy core crosslinked polyethylene insulated steel tape armouring polyethylene outer sheathed power cable	·Stable and reliable performance, can be directly buried, can withstand a certain mechanical external force, but can not withstand large tension.
YJLHV32	·Aluminum alloy core crosslinked polyethylene insulated fine wire armouring polyvinyl chloride outer sheathed power cable	· It can be laid in a dry or humid environment, and the indoor support,bracket, ladder or cable fixture can be used. Outdoor can use cable trench, tunnel or direct buried laying, can withstand greater mechanical external force.
YJLHY33	·Aluminum alloy core crosslinked polyethylene insulated fine wire armoured polyethylene outer sheathed power cable	·Light weight, can be laid in a dry or humid environment, indoor can be used bracket, bracket, ladder or cable fixture surface; Outdoor can use cable trench, tunnel or direct buried laying, can withstand greater mechanical external force. With excellent flame retardancy and fire resistance, are up to class A.

Note: According to customer requirements, the production of flame retardant A grade, flame retardant B grade flame retardant C grade or aluminum alloy cable, cable model before adding "ZA-, ZB- or ZC(ZR) -"; Such as ZA-YJLHV, ZB-YJLHV22, ZC-YJLHY. All kinds of halogen-free low-smoke flame retardant aluminum alloy cables, adding "WDZA -, WDZB - or WDZR(ZC) -" before the cable model. If the aluminum alloy cable with -40℃ low temperature resistance is used in areas with very low ambient temperature, add "(-40)" after the product model.
