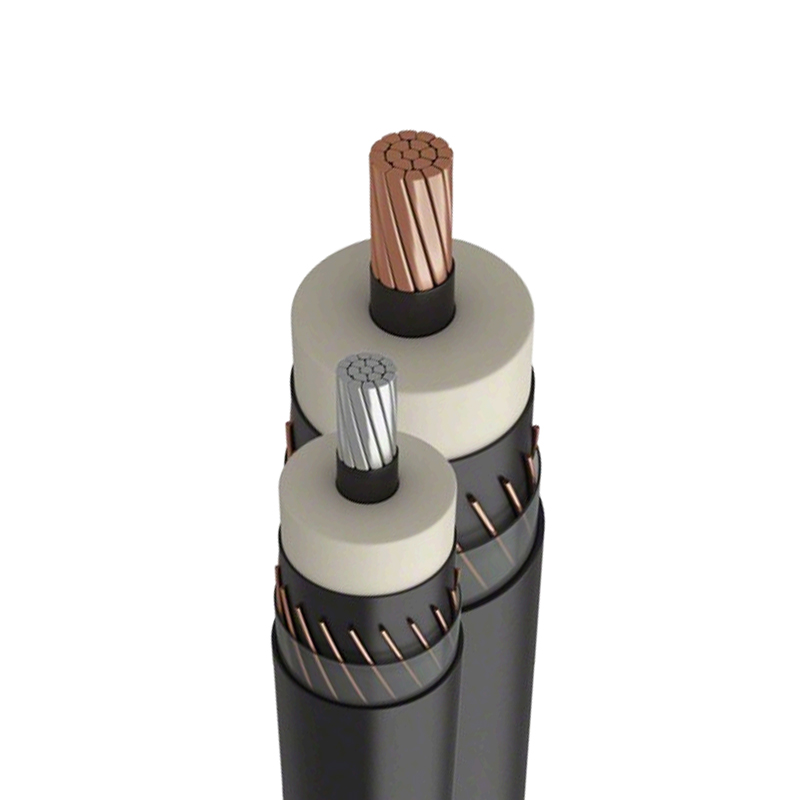

عربىXLPE Insulated Power Cable for Rated Voltage 3.6/6kV~26/35kV
- Type and name of cable
| Type | Application | |
| Yiv | Copper Core XLPE Insulated pvc Sheathed Power Cable |
Indoor, tunnel, cable trench and other places, can not withstand external mechanical forces. Single core cables are not allowed to be laid in magnetic management.
Indoor, tunnel, cable trench or buried laying, can withstand certain mechanical external forces, but cannot withstand large tension.
Indoor, tunnel, cable trench dredging or buried laying, etc., can withstand mechanical external force and certain tension. |
| YJLV | Aluminum Core XLPE Insulated PVC Sheathed Power Cable |
|
| VY | Copper Core XLPE Insulated Polyethylene Sheathed Power Cable |
|
| YJLY | Aluminum Core XLPE Insulated Polyethylene Sheathed Power Cable |
|
| Yv22 | Copper Core XLPE Insulated Steel Belt Armored PVC Sheathed Power Cable |
|
| YJLV22 | Aluminum Core XLPE Insulated Steel Belt Armored PVC Sheathed Power Cable |
|
| YIV23 | Copper Core XLPE Insulated Steel Belt Armored Polyethylene Sheathed Power Cable |
|
| YILV23 | Aluminum Core XLPE Insulated Steel Belt Armored Polyethylene Sheathed Power Cable |
|
| YJV32 | Copper Core XLPE Insulated Fine Steel Wire Armored PVC Sheathed Power Cable |
|
| YJLV32 | Aluminum Core XLPE Insulated Fine Steel Wire Armored PVC Sheathed Power Cable |
|
| YJV33 | Copper Core XLPE Insulated Fine Steel Wire Armored Polyethylene Sheathed Power Cable |
|
| YJLV33 | Aluminum Core XLPE Insulated Fine Steel Wire Armored Polyethylene Sheathed Power Cable |
- Production Range of cable
| Type | Cores | Rated Voltage kV | ||||||
| 3.6/6 | 6/66/10 | 8.7/10 8.7/15 |
12/20 | 18/20 18/30 |
21/35 | 26/35 | ||
Nominal cross-section mm2 |
||||||||
| YJV YILV YJY YJLY |
1 | 25-630 | 25-630 | 25-630 | 35-630 | 50-630 | 50-630 | 50-630 |
| 3 | 25-630 | 25-630 | 25-630 | 35-630 | 50-630 | 50-630 | 50-400 | |
| YJV22 YJLV22 YJV23 YJLV23 |
1 | 25-630 | 25-630 | 25-630 | 35-630 | 50-630 | 50-630 | 50-630 |
| 3 | 25-630 | 25-630 | 25-630 | 35-630 | 50-630 | 50-630 | 50-400 | |
| YJV32 YJLV32 YJV33 YJLV33 |
1 | 25-630 | 25-630 | 25-630 | 35-630 | 50-630 | 50-630 | 50-630 |
| 3 | 25-630 | 25-630 | 25-630 | 35-630 | 50-630 | 50-630 | 50-400 | |
Note: Single-core armoured cable is suitable for DC system, not for AC system, should use non-magnetic material armoured layer or use magnetic insulation measures.
- Construction of cable

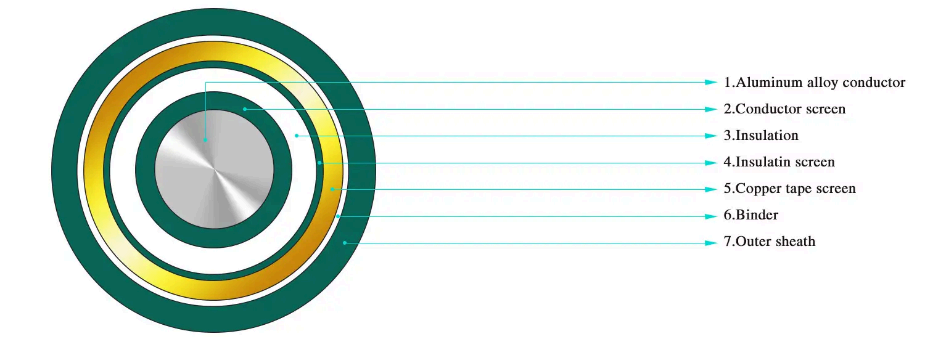

·Single core XLPE insulation power cable for rated voltage from 3.6/6kV~26/35kV

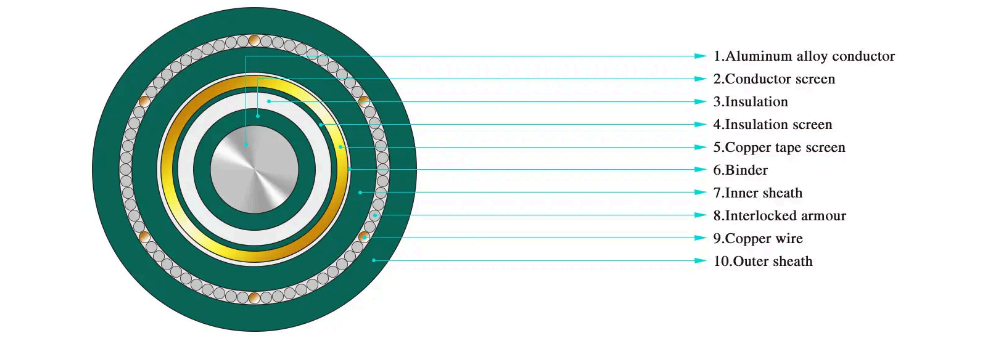

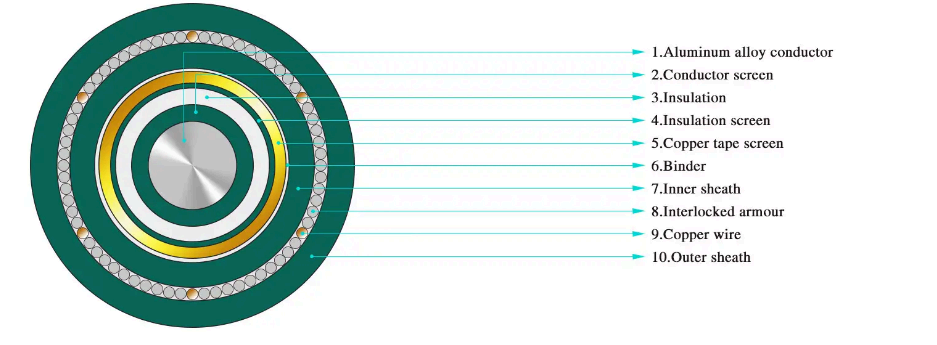

·Single core XLPE insulation steel wire armoured power cable for rated voltage from 3.6/6kV~26/35kV

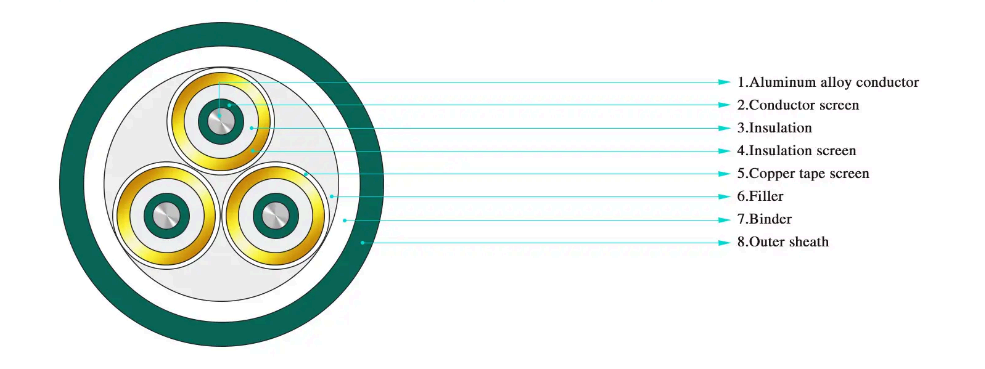

·Three-core XLPE insulation power cable for rated voltage from 3.6/6kV~26/35kV

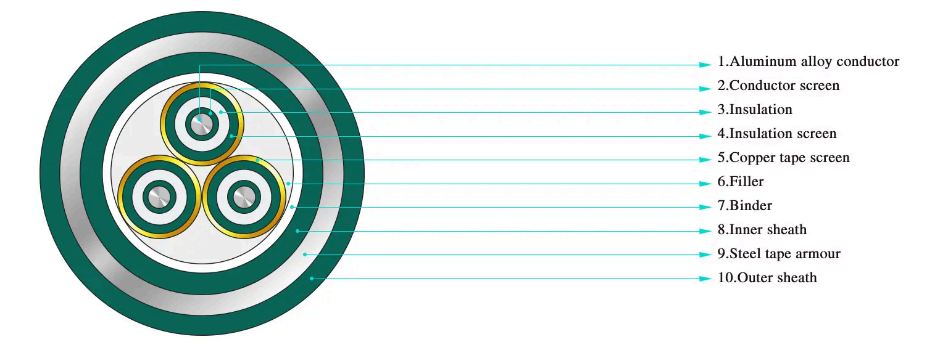

·Three-core XLPE insulation steel tape armoured power cable for rated voltage from 3.6/6kV~26/35kV
·Three-core XLPE insulation steel wire armoured power cable for rated voltage from 3.6/6kV~26/35kV
- Type and name of cable
|
Nominal cross-sectional area mm2 |
Insulation thickness mm |
YJV YJY YJLVYJLY | YJV22 YJV22 YJLV23 YJLV23 | YJV32 YJV32 YJLV32 YJLV32 | ||||||
| Approx overall diameter mm |
Calculated weight of cable |
Approx overall diameter mm |
Calculated weight of cable |
Approx overall diameter mm |
Calculated weight of cable |
|||||
| YJV YJY |
YJLV YJLY |
YJV22 YJV22 |
YJLV23 YJLV23 |
YJLV23 YJLV23 |
YJLV32 YJLV32 |
|||||
| 1×25 | 2.5 | 17.2 | 495 | —— | 21.0 | 737 | —— | 23.4 | 848 | —— |
| 1×35 | 2.5 | 18.3 | 608 | —— | 22.1 | 865 | —— | 24.5 | 980 | —— |
| 1×50 | 2.5 | 19.7 | 753 | 464 | 23.3 | 1017 | 728 | 25.7 | 1136 | 847 |
| 1×70 | 2.5 | 21.3 | 977 | 558 | 24.9 | 1260 | 841 | 27.3 | 1386 | 967 |
| 1×95 | 2.5 | 23.2 | 1256 | 676 | 26.6 | 1551 | 971 | 29.2 | 1695 | 1115 |
| 1×120 | 2.5 | 24.4 | 1498 | 770 | 27.8 | 1808 | 1080 | 30.4 | 1962 | 1234 |
| 1×150 | 2.5 | 26.2 | 1792 | 893 | 29.6 | 2123 | 1224 | 32.2 | 2285 | 1386 |
| 1×185 | 2.5 | 27.8 | 2151 | 1030 | 31.4 | 2515 | 1394 | 33.8 | 2670 | 1549 |
| 1×240 | 2.6 | 30.6 | 2730 | 1262 | 34.2 | 3129 | 1661 | 36.6 | 3297 | 1829 |
| 1×300 | 2.8 | 33.5 | 3366 | 1521 | 38.3 | 4139 | 2294 | 39.5 | 3980 | 2135 |
| 1×400 | 3.0 | 36.6 | 4216 | 1851 | 41.4 | 5056 | 2691 | 42.6 | 4885 | 2520 |
| 1×500 | 3.2 | 40.7 | 5330 | 2294 | 45.5 | 6259 | 3223 | 47.7 | 6209 | 3173 |
| 1×630 | 3.2 | 44.6 | 6708 | 2799 | 49.8 | 7769 | 3860 | 54.2 | 8044 | 4135 |
| 1×800 | 3.2 | 48.7 | 8412 | 3409 | 54.1 | 9594 | 4591 | 57.3 | 9717 | 4714 |
| 1×1000 | 3.2 | 52.7 | 10210 | 4060 | 57.9 | 11456 | 5306 | 62.3 | 11759 | 5609 |
| 3×25 | 2.5 | 34.6 | 1672 | —— | 39.2 | 2229 | —— | 40.6 | 2800 | —— |
| 3×35 | 2.5 | 37.0 | 2039 | —— | 42.0 | 2663 | —— | 44.2 | 3587 | —— |
| 3×50 | 2.5 | 39.8 | 2488 | 1621 | 44.8 | 3151 | 2279 | 47.0 | 4137 | 3265 |
| 3×70 | 2.5 | 43.6 | 3225 | 1968 | 48.6 | 3945 | 2682 | 50.8 | 5026 | 3763 |
| 3×50 | 2.5 | 47.5 | 4086 | 2346 | 52.9 | 4917 | 3169 | 56.1 | 6608 | 4860 |
| 3×120 | 2.5 | 50.3 | 4883 | 2698 | 55.7 | 5732 | 3535 | 58.9 | 7501 | 5304 |
| 3×150 | 2.5 | 54.0 | 5782 | 3086 | 59.6 | 6721 | 4011 | 62.8 | 8592 | 5882 |
| 3×185 | 2.5 | 57.6 | 6955 | 3591 | 63.2 | 7912 | 4531 | 66.4 | 9931 | 6550 |
| 3×240 | 2.6 | 63.6 | 8767 | 4364 | 69.6 | 9881 | 5455 | 72.8 | 12085 | 7659 |
| 3×300 | 2.8 | 69.9 | 10755 | 5219 | 76.1 | 12010 | 6446 | 79.3 | 14399 | 8835 |
| 3×400 | 3.0 | 76.5 | 13406 | 6311 | 84.3 | 15605.0 | 8475.0 | 87.6 | 18531 | 11401 |
| 3×500 | 3.2 | 85.1 | 16906 | 7797 | 93.3 | 19368.0 | 10214.0 | 96.6 | 22589 | 13435 |
